Select Your Experiment

Connect the vial of base fluid to the pump module​

In anticipation of starting a new experiment, take a fresh vial of base fluid, open it, and connect it to the left holder on the eProtein Discovery instrument pump module.

important note

It is important to equilibrate the base fluid with the lab atmosphere prior to use. This is to prevent outgassing of the base fluid during the run, as air bubbles can interfere with the droplet movement. We recommend attaching the base fluid to the instrument the day before you will perform the run. An acceptable alternative is to incubate the uncapped base fluid at 30°C / 86°F for 1 hour.

Connect the waste container, empty, to the right holder of the pump module.

Vial of base fluid and the waste container connected to the pump as shown on the screen

[1]Product Image [2]Product Image

Connection of the empty waste container [1] and the vial of base fluid [2] to the pump

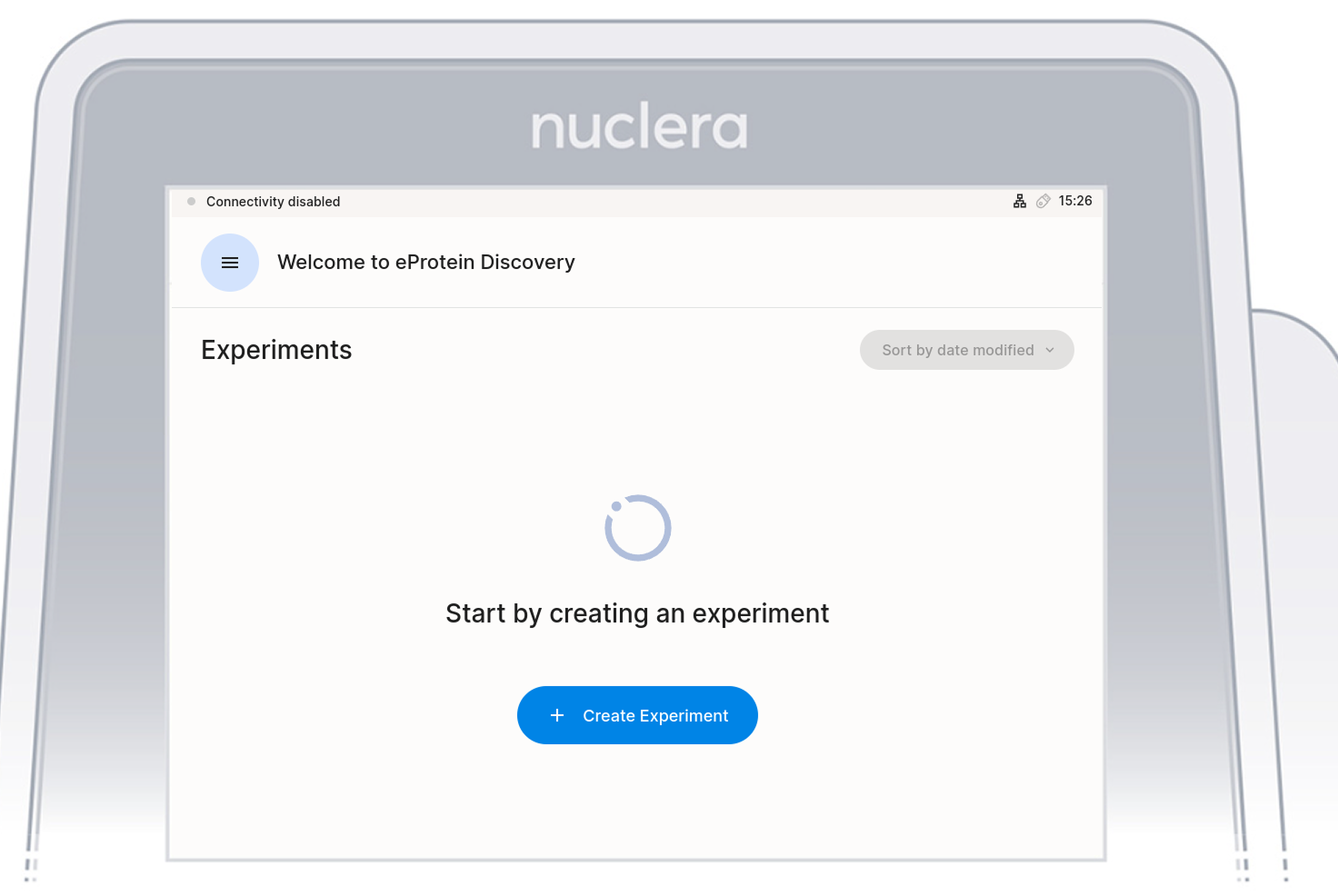

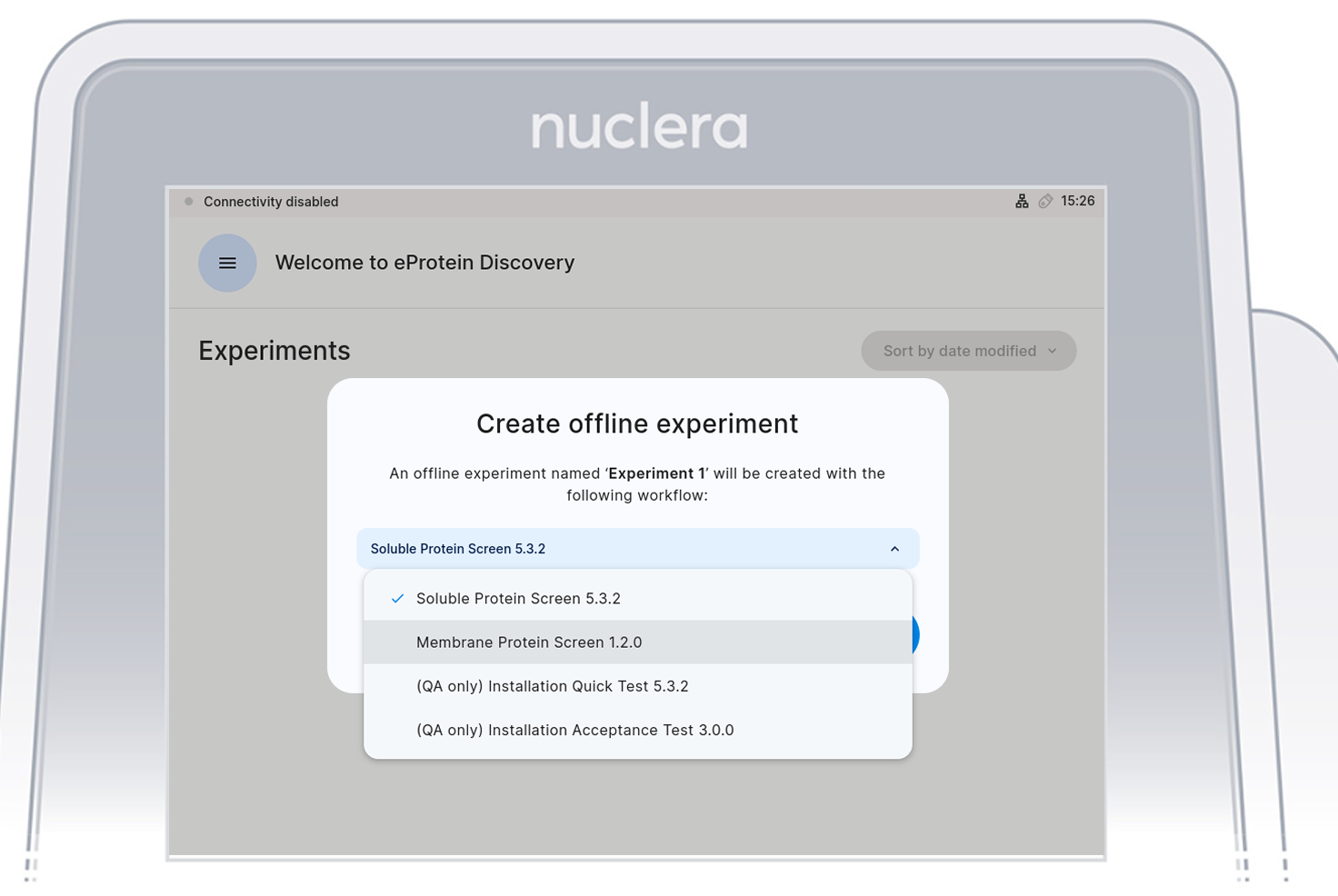

Depending if the user is operating on a Standalone system or on a Cloud Connected System, the first few steps of the experiment to carry out on the instrumennt will change. Select the appropriate tab for your use

Log in and select the experiment​

Press the [Power Switch] to activate the Instrument power-up, initialization and self-test sequence.

Log into the instrument software by selecting the user and entering PIN.

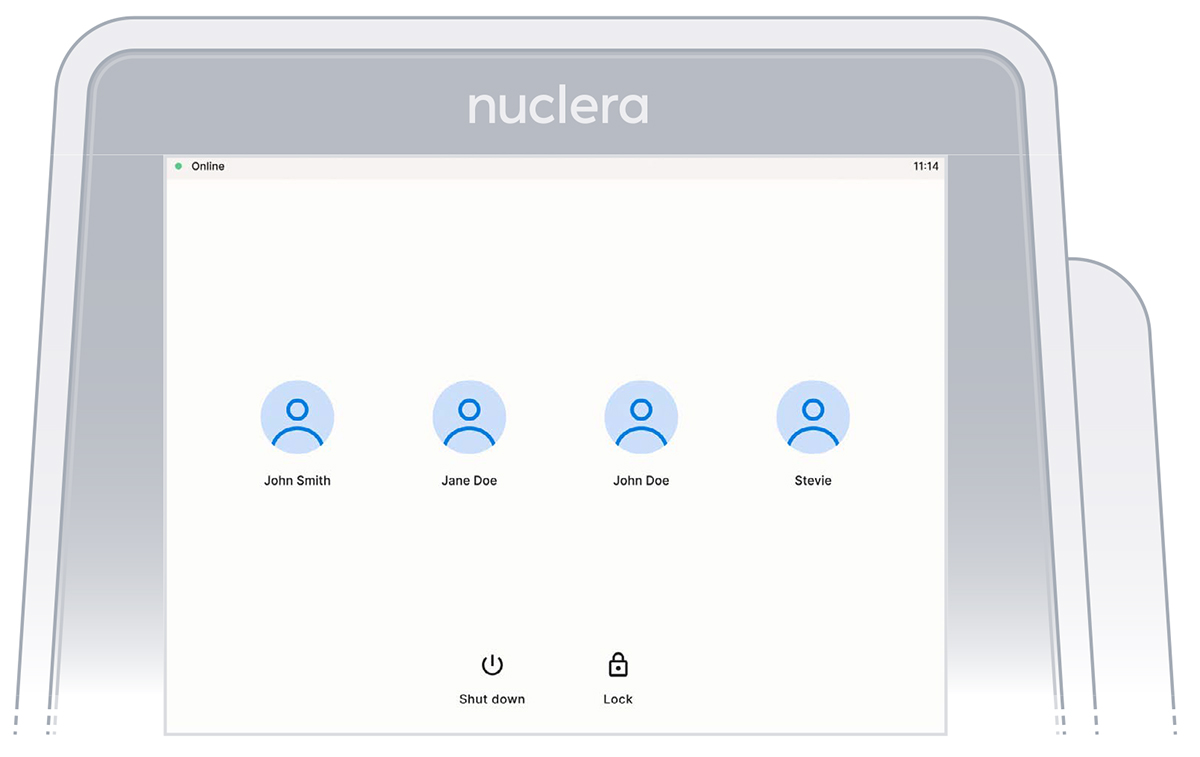

User accounts on the instrument software

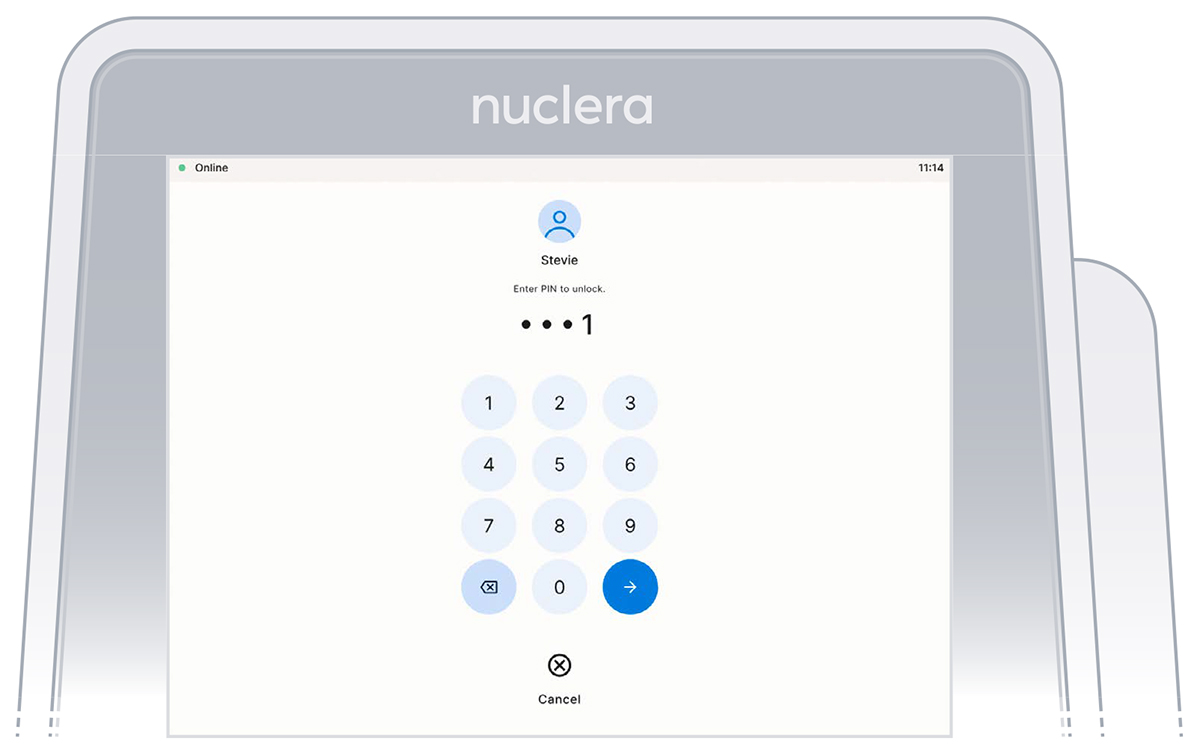

PIN Interface

On the instrument software, select an experiment you set up on eProtein Discovery.

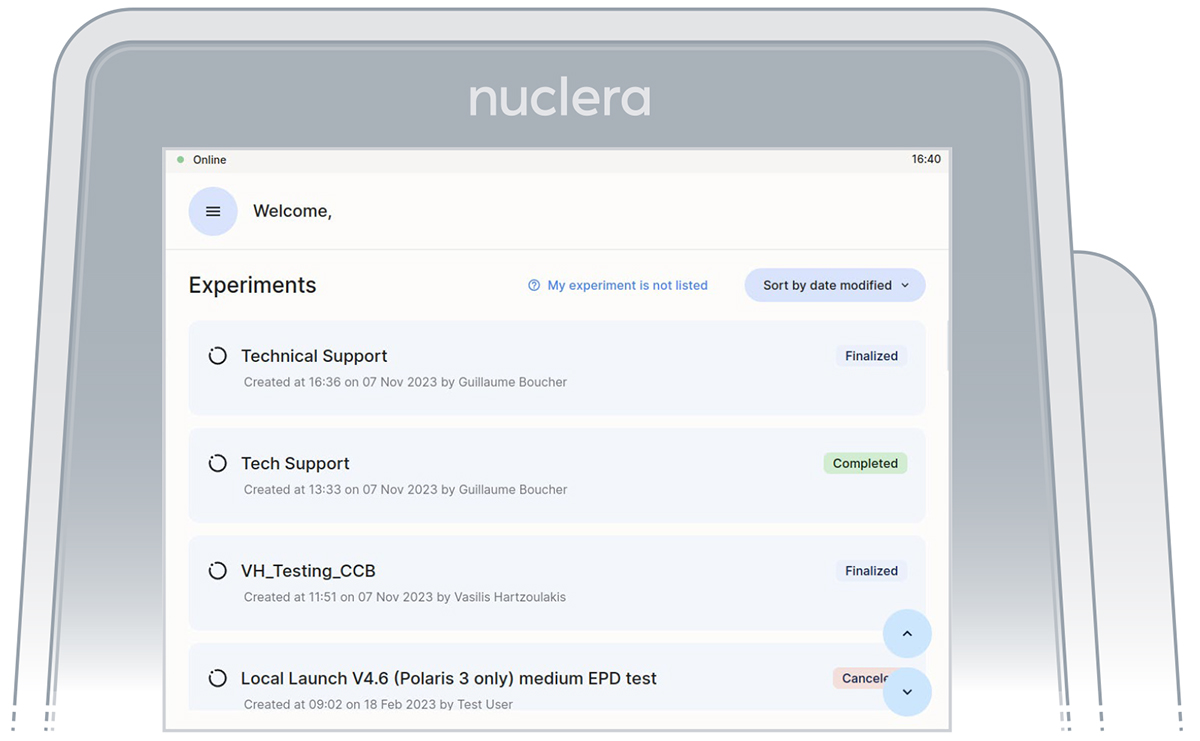

Instrument software welcome page with the list of finalized experiments

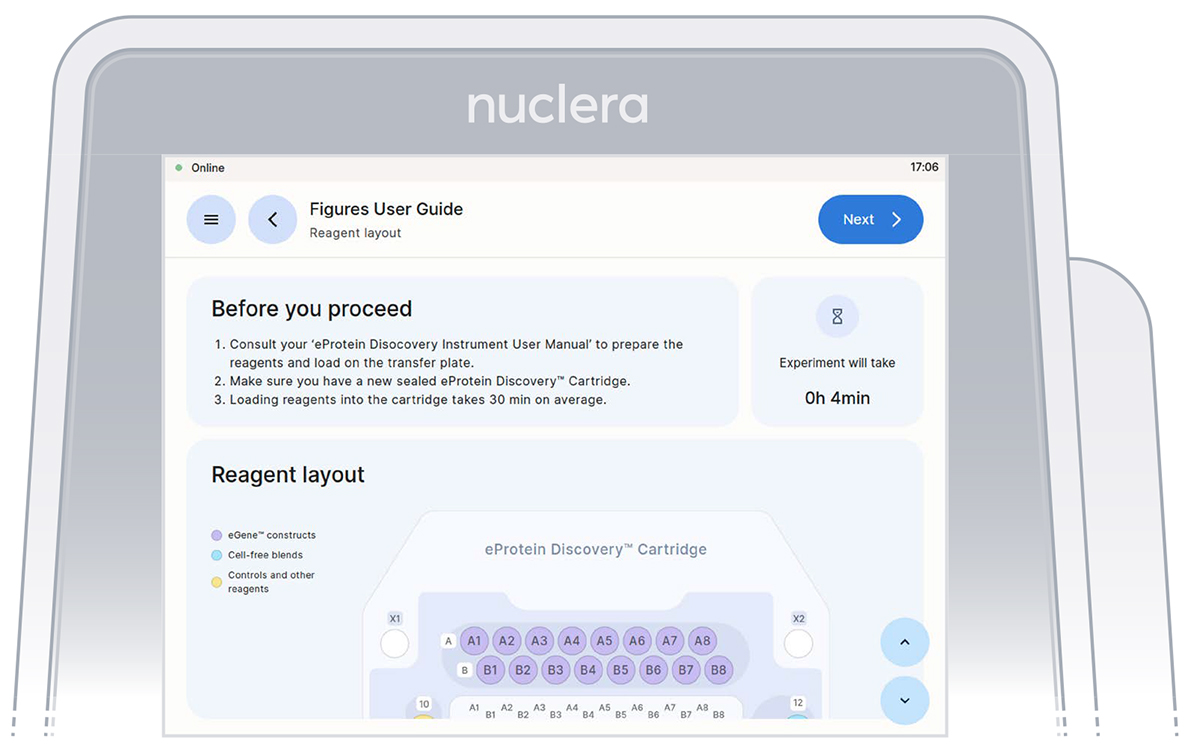

Read the Before you proceed section and press the [Next] button.

Instrument software welcome page with the list of finalized experiments

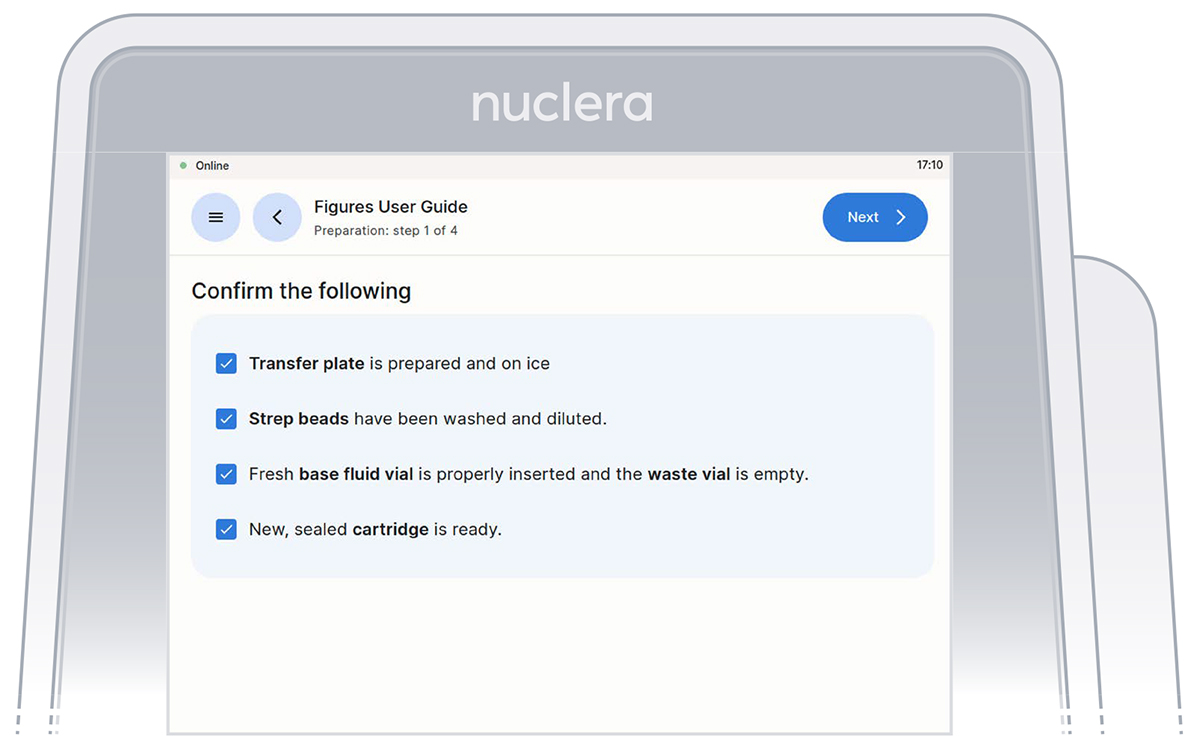

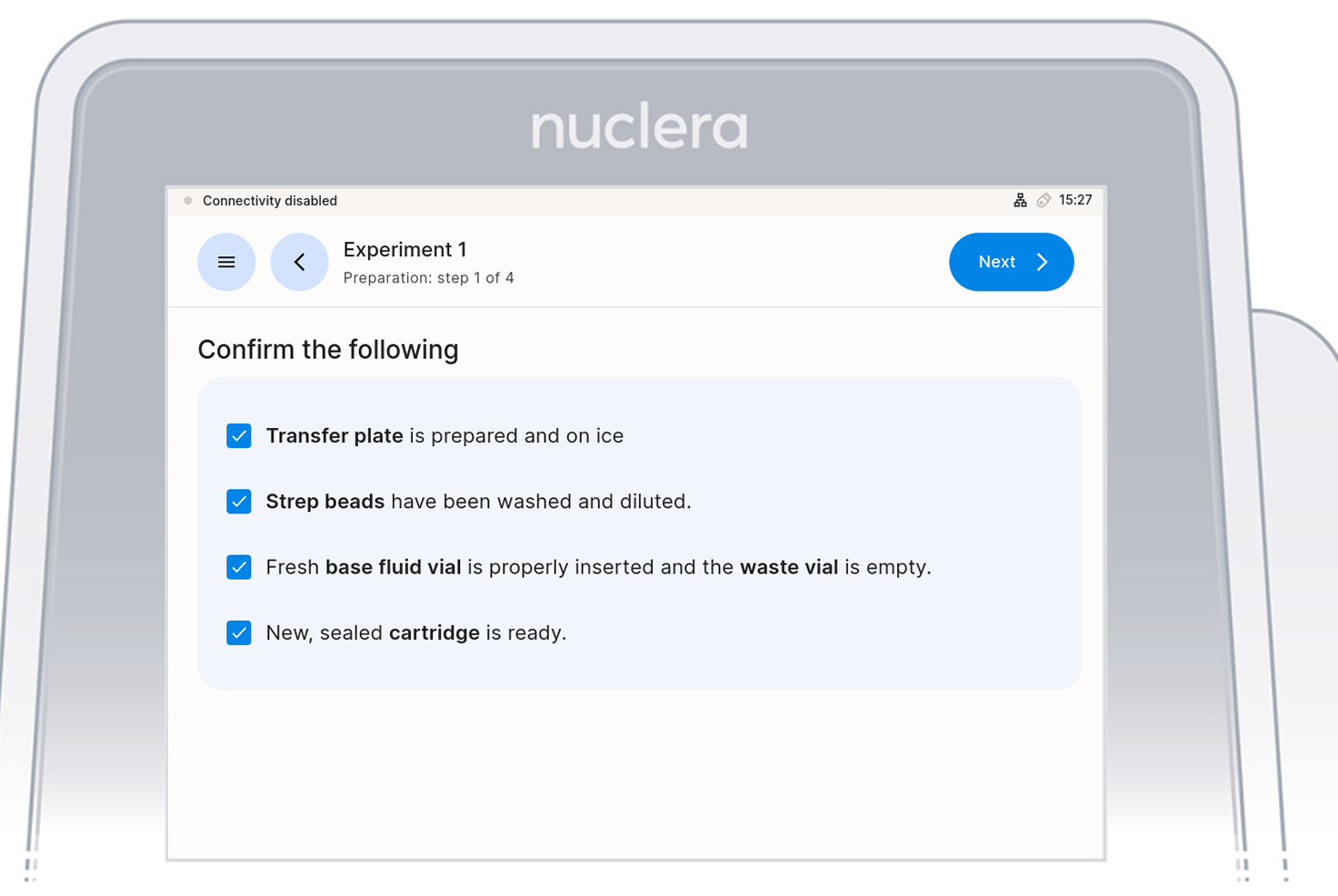

Go through and tick the checklist, and press the [Next] button. The drawer will open.

Loading of the cartridge on the eProtein Discovery instrument.
